House Elevation Plot Inspections
Precision elevation measurements to determine how level your foundation is — essential for detecting differential settlement.
Book NowWhat is a House Elevation Plot?
An elevation plot uses a device that measures elevation differences across a home using a base and liquid-filled tubing. Measurements are taken from a central location to the corners of each ground-floor room to determine how level the floor and foundation are. This works on both elevated pier & beam homes and slab-on-grade foundations.
What do you look for?
- Elevation differences from the central location in all areas of the home
- Differences exceeding 2 inches that indicate potential differential settlement
- Sloped or uneven floors throughout the property
Can I fix it?
- Have the floor leveled before purchasing the property
- Monitor the condition for worsening slope over time
- Use results as a baseline for re-inspection in two and five years to track settlement progression
Why Precision Elevation Measurement Matters

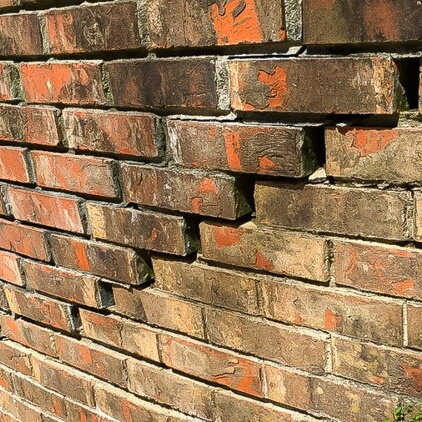

Differential settlement — where one part of a foundation moves more than another — is one of the most expensive problems a homeowner can face. Early detection through precise elevation measurement can prevent costly structural repairs and gives buyers critical leverage during negotiations.
- Measurements taken with calibrated survey equipment accurate to 0.01 ft
- Results plotted as a visual elevation map showing high and low points
- Ideal for pier-and-beam and slab-on-grade foundations alike
- Engineering-level interpretation of findings — not just raw numbers
- Can be combined with a full home inspection or standalone appointment
An elevation plot is the only objective way to determine whether a slab or pier-and-beam foundation is performing within acceptable tolerances. Noble's engineer-trained inspectors don't just collect measurements — they interpret them in the context of normal settlement ranges for your region.
Markets We Serve
Noble Property Inspections provides house elevation plot inspections across 14 markets in 6 states. Click your city to learn more.
